VC 7.5

Specifications

Length        7.5m

Beam         2.95m

Engines     Twin 130hp to 200hp Outboards

Construction

  • Advanced composite construction

Weight (Dry Hull)

  • Composite construction:1900kg

Configuration options

  • Center Cabin
  • Center Console
  • Full Cabin

COMMERCIAL OPERATIONS NOTES

STRUCTURAL DESIGN STANDARD: ISO 12215-5:2008, DESIGN CATEGORY: A-OCEAN,
DESIGN LIMITATIONS (COMPOSITE BUILD): FULL LOAD 4500KG, 40KTS, HALF LOAD 3500KG, 45KTS
NSCV OPERATIONAL CATEGORY: 2C, LIMIT 10 PASSENGERS/CREW, UPRIGHT FLOATION

All Vapor Cats feature a unique bow shape that produces an extended waterline length and facilitates a finer entry angle thus giving the vessel handling characteristics typical of much larger vessels.

The unique asymmetric tunnel geometry generates spray at specific points inside the tunnel creating a high-density air/water vapor cushion that the hull then rides on. The result is a significantly dampened ride and reduced fuel consumption. Full-length longitudinal steps give the hull efficient lift and dynamic stability and the catamaran hull configuration gives superior stability in all conditions. Additionally, all Vapor Cats feature self-draining decks ensuring superior swamping protection.

All Vapor Cats are designed and built to Australian commercial craft standards (NSCV). This means that if you use your boat for private use you know that the structure, stability and floatation of your Vapor Cat will keep you and your family safe. If you are a commercial operator you will benefit from the lower towing weight of the advanced composite construction and the increased passenger capacity of the Vapor Cats compared to a similar length monohull.

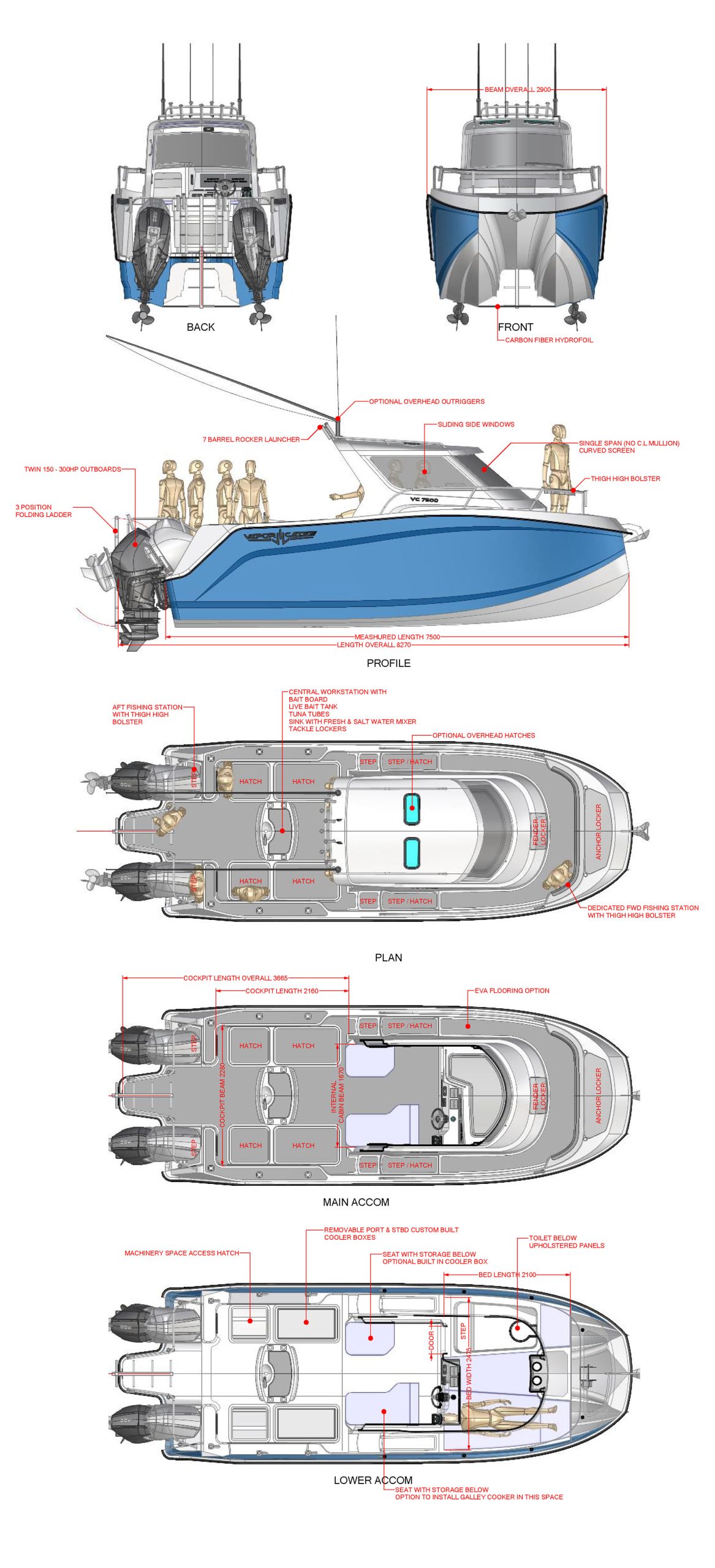

CENTER CABIN LAYOUT

Configuration Options

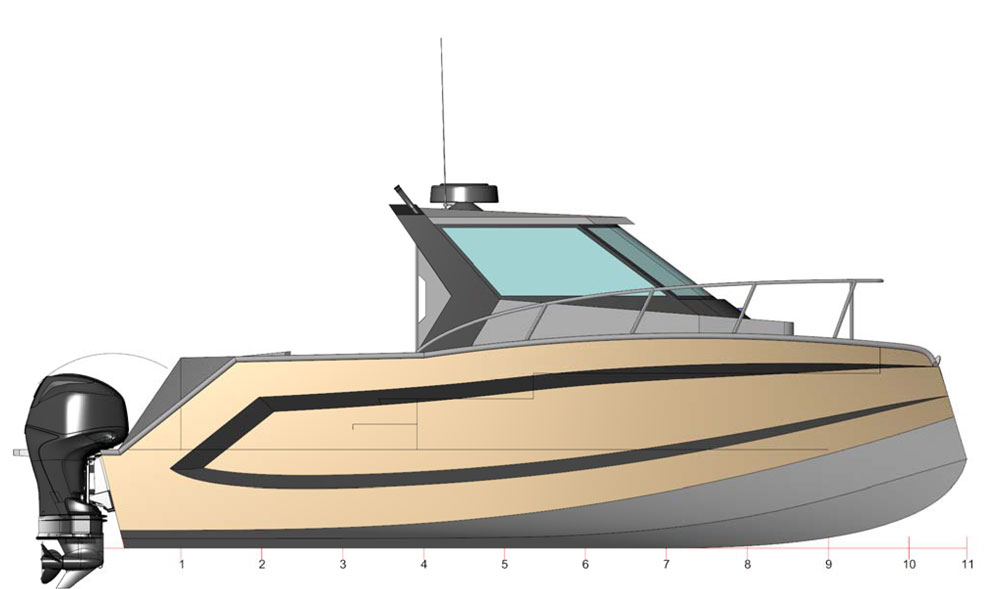

Center Cabin

Center cabin has been specifically designed for sportfishing.
Features a full stepped cabin walk around with battle stations both forward & aft for landing that trophy fish. There is an enclosed head and twin berth forward of the helm, reversible seating for four aft of the helm & a twin sink work station at the aft end of the cockpit with built in 115lt ice box & live bait tank.

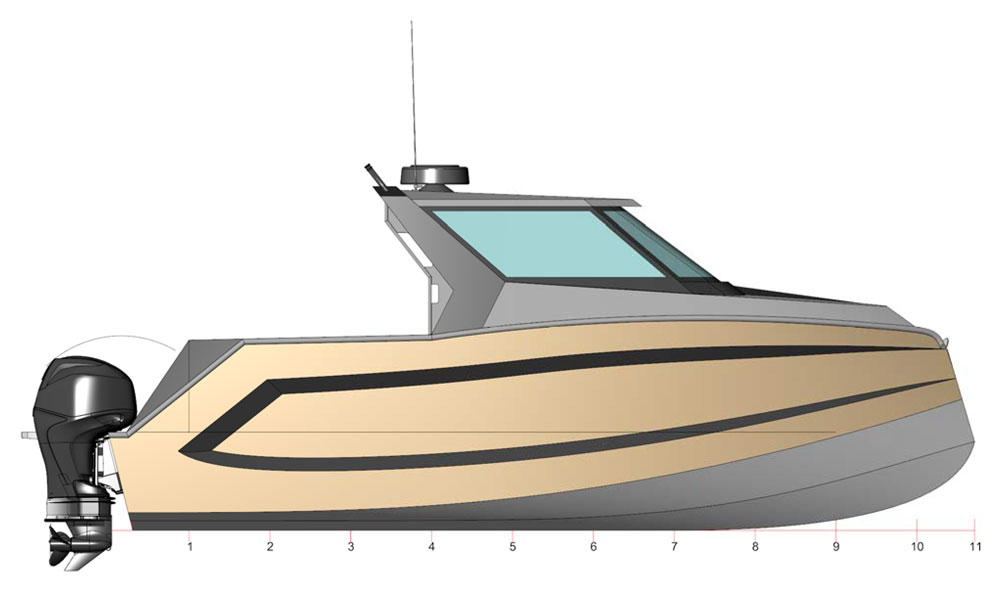

Full Cabin

The full cabin features a traditional full cabin layout with generous sidedecks for facilitating easy access forward. There is an enclosed head and twin berth forward of the helm, reversible seating for four aft of the helm & a twin sink work station at the aft end of the cockpit with built in 115lt ice box & live bait tank.

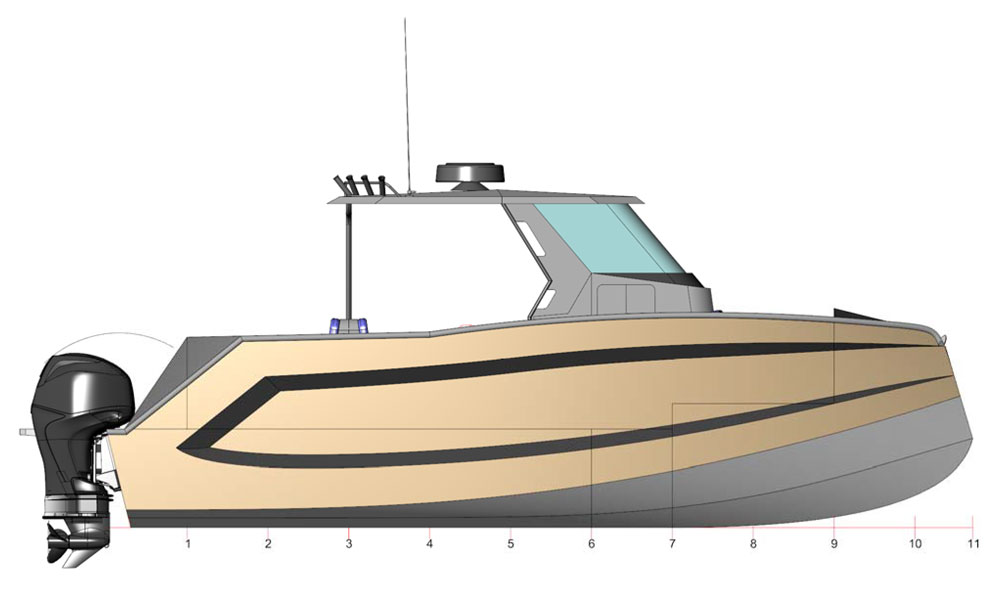

Center Console

A more traditional centre console layout featuring an enclosed head under the helm, full single level walk around & seating both fwd & aft of the helm.
